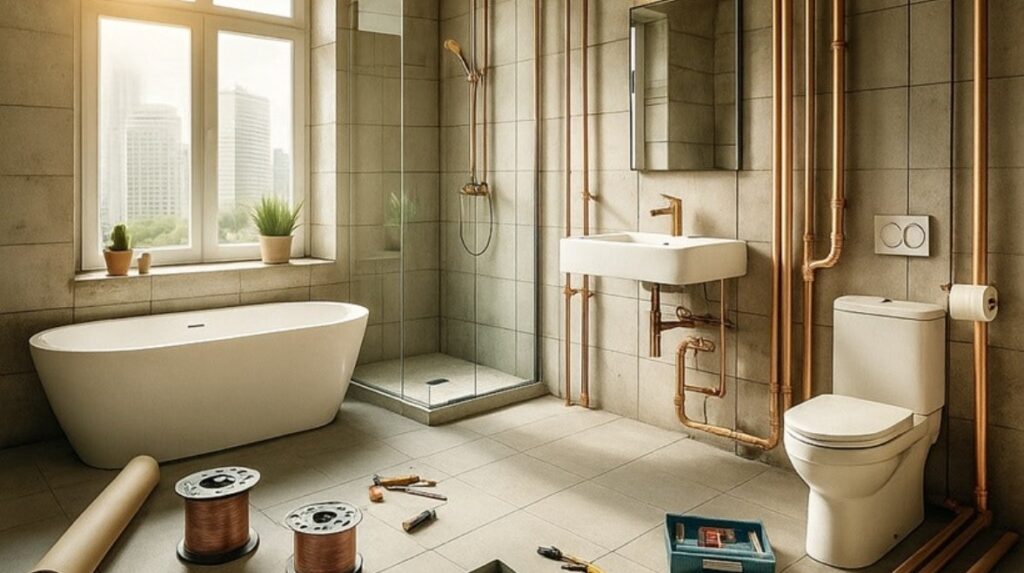

1. Concept Phase: Performance and Compliance Embedded Early

1.1 Translating design intent into measurable criteria

In early concept design, global studios typically define a set of non-negotiable performance goals that sit alongside the formal and urban design narrative. For commercial and institutional interiors, these goals often include:

• Accessibility for diverse user groups (grounded in ADA Standards for Accessible Design).
• Water and energy performance targets, frequently aligned with WaterSense and leading jurisdictional codes.
• Durability under high cycle counts and vandal-resistance in public spaces.
• Compatibility with existing or planned building management systems (BMS) and digital twins.

At this stage, architects and engineers start by defining use cases rather than specific products:

• Expected daily users per fixture.
• Peak loading scenarios (e.g., event intermissions, class changeovers, or flight banks).
• Required redundancy and maintainability (N+1 strategies, isolation zones, and by-pass options).

1.2 Mapping qualitative goals to code and standard frameworks

The qualitative brief is then reconciled with a web of overlapping requirements:

• ADA & local accessibility codes
  • Clear floor spaces and knee/toe clearance at lavatories (ADA §305, §306, §606).
  • Reach ranges for controls, operable parts, sensor windows, and manual overrides (ADA §308).
• Water efficiency frameworks
  • WaterSense lavatory faucet specifications, which historically cap flows around 1.5 gpm at 60 psi, with draft revisions moving toward 1.2 gpm.
  • CALGreen and similar codes that prescribe maximum flow rates for public and common-area lavatories (often 0.5 gpm for many non-residential applications) and require overall potable water reduction.
• Product performance standards
  • ASME A112.18.1/CSA B125.1 for plumbing supply fittings, which defines design, materials, and performance criteria for faucets, valves, and associated components between stop and terminal fitting.

Rather than treating these as late-stage compliance checks, leading studios embed them in early room data sheets and BIM templates. For example, all lavatories tagged as “public” can be pre-associated with water use targets, ADA compliance flags, and permissible fixture height ranges.

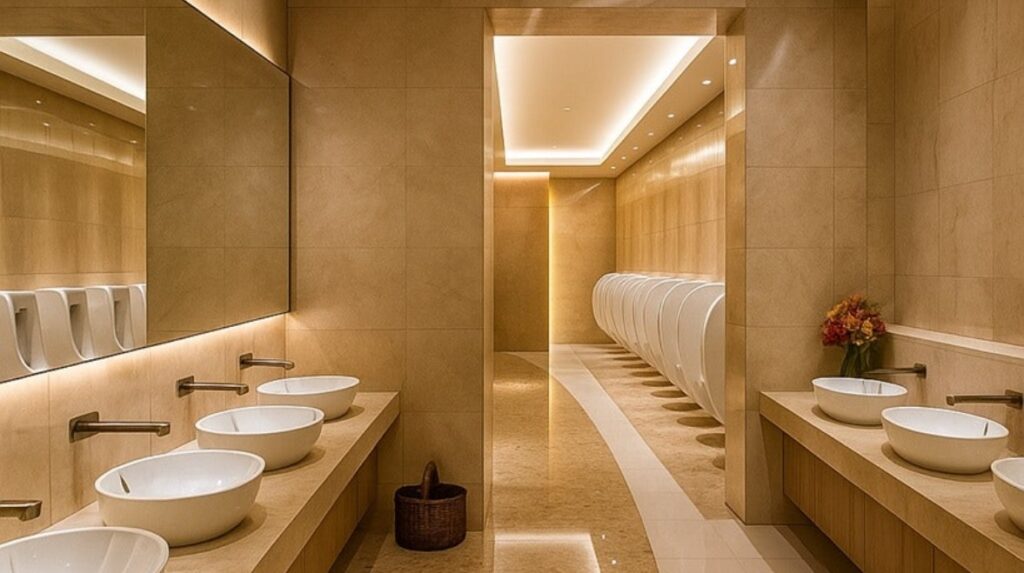

2. Schematic Design: Systems, Grids, and Sensors

2.1 Aligning architectural modules with MEP infrastructure

During schematic design, global studios refine wet-core modularity, ensuring that vertical stacks, horizontal distribution, and equipment rooms align with structural and façade grids. Critical decisions here include:

• Locating main plumbing trunks relative to cores and expansion joints.
• Establishing fixture zones (e.g., standard 900–1200 mm bands for lavatories) that maintain ADA clearances and coordinate with casework and partitions.
• Reserving space for access panels, control valves, and future retrofits—an important durability consideration often overlooked in purely aesthetic design exercises.

2.2 Sensor-driven fixtures as system components

Touchless faucets, soap dispensers, and flush valves are now baseline in many commercial projects. Global studios treat them as system components, not standalone objects, considering:

• Power strategies (battery vs. hard-wired with low-voltage transformers).
• Service access and replacement cycles.
• Potential BMS integration (run-time data, fault notifications, leak detection).

Manufacturers increasingly publish architect-oriented guidance for these decisions. For example, FontanaShowers maintains architect and designer FAQs on specifying shower systems and touchless controls for hospitality projects, which highlight compatibility with BIM workflows and documentation of certifications and installation constraints.

These resources can be referenced during schematic design to ensure that provisional fixture selections are realistic from an installation and maintenance standpoint.

3. Design Development: From Fixture Schedules to Coordinated BIM

3.1 Parametric fixture families and data consistency

In design development, architects and engineers formalize initial assumptions into fixture schedules and BIM families with consistent parameters.

Typical data fields for lavatory faucets and similar fittings include:

• Standardized product code and manufacturer reference.
• Flow rate at design pressure, with WaterSense and CALGreen flags where applicable.
• ADA compliance attributes (reach, clearances, operable parts).
• Power requirements (voltage, VA, emergency power strategy).
• ASME/CSA standard listing (e.g., ASME A112.18.1/CSA B125.1).

The objective is to avoid “untyped” or generic families that lack data—these create RFIs and change orders further down the line when contractors cannot verify compliance or performance characteristics.

3.2 Manufacturer coordination and spec-grade selections

Global studios often narrow options to spec-grade lines that balance durability, serviceability, and standardization. Architect-oriented manufacturer collections can accelerate this process. For instance:

• FontanaShowers’ Architect Series focuses on touchless faucets curated for architects and interior designers, emphasizing spec-grade internals suited to high-traffic environments.
• BathSelect’s commercial touchless faucet ranges are positioned explicitly for architects and designers working on hospitality and public restrooms, with emphasis on durability, water savings, and adjustable settings appropriate for high-use environments.

At this stage, design teams typically:

1. Align fixture cutsheets with internal performance targets and code matrices.
2. Confirm ADA compliance at representative details (including lavatory, mirror, and accessory heights).
3. Verify that all selected fixtures list relevant ASME/CSA standards and, where applicable, WaterSense certification.

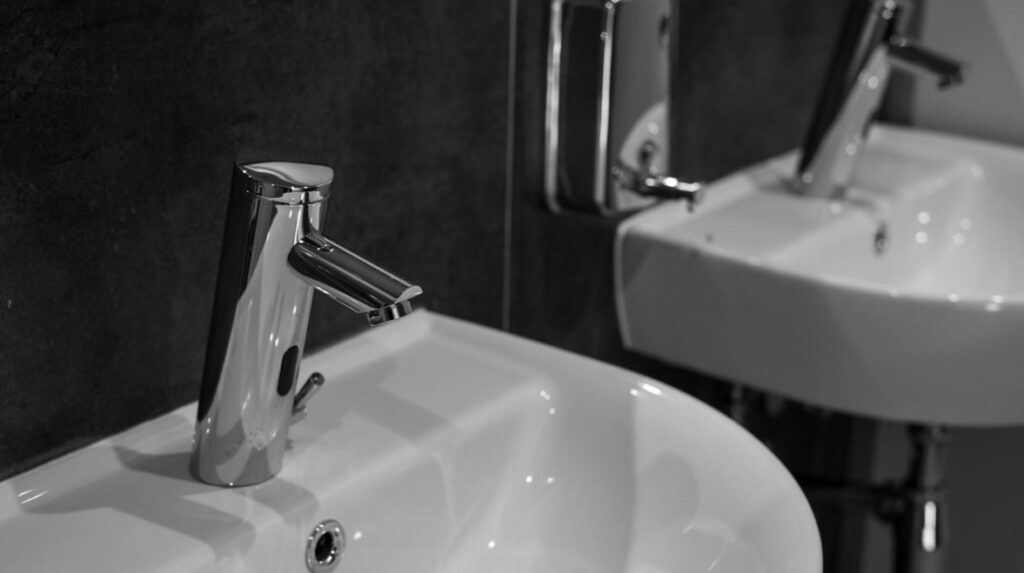

4. Durability and Serviceability as Core Design Drivers

4.1 Material selection and vandal resistance

In high-traffic and security-sensitive environments, durability is a first-order consideration. Typical technical strategies include:

• Material hierarchy
  • Cast brass or stainless steel bodies for faucets and valves to resist impact, corrosion, and repeated cleaning cycles.
  • PVD or equivalent finishes designed to withstand abrasion and chemical exposure.
• Vandal-resistant detailing
  • Tamper-resistant fasteners and concealed mounting hardware.
  • Recessed or protected sensor windows to reduce damage risk.

Manufacturer design guidance for commercial restrooms often foregrounds these aspects. For example, FontanaShowers’ commercial restroom design overview discusses high-traffic touchless fixtures and their deployment in hospitality and office projects, focusing on robust materials and high-duty cycle performance:

4.2 Service access, isolation, and lifecycle planning

Durability is incomplete without serviceability. Global studios increasingly design to reduce mean time to repair (MTTR):

• Locating isolation valves and strainers in accessible but secure zones.
• Providing adequate depth and clearances behind access panels for solenoid and power pack replacement.
• Coordinating panel locations with interiors to avoid ad-hoc field decisions that compromise the design or access.

In multi-building or campus environments, studios standardize fixture families to minimize spare parts inventory and training complexity for facility managers.

6. Accessibility as an Integrated Technical Discipline

6.1 ADA, reach ranges, and coordinated assemblies

Accessibility is not solved at the faucet alone; it depends on an assembled condition of lavatory, fixtures, and accessories:

• Forward approach clearances, knee and toe space, and counter cut-outs must comply with ADA guidance on lavatories and sinks.
• Faucets and sensor windows must fall within prescribed reach ranges, considering realistic wheelchair positions and obstructions.
• Soap dispensers, dryers, and paper dispensers should be coordinated in elevation, keeping all operable components within reach and avoiding conflicting uses of the same reach envelope.

Global studios frequently use standardized restroom typologies—pre-vetted layouts with ADA and local code compliance documented—to minimize project-by-project rework. Within these typologies, designers can swap in alternate finishes and fixture families without undermining the core accessibility logic.

6.2 Manufacturer ADA documentation

Manufacturer-specific ADA resources help validate final fixture selections. For instance, FontanaShowers maintains a dedicated collection of ADA-compliant bathroom faucets targeted at both residential and commercial/public restrooms.

On the BathSelect side, architect-focused overviews outline how their commercial touchless ranges are applied in hospitality, office, and public building contexts, including where ADA and other accessibility considerations are relevant.

These documents should be treated as supporting material, always cross-checked against jurisdictional codes and project-specific accessibility consultants.

7. Construction, Commissioning, and Post-Occupancy Feedback

7.1 Submittals, mock-ups, and field verification

During construction, submittal review and field checks are where theoretical compliance and durability assumptions are validated. Leading studios typically require:

• Mock-ups of representative restrooms, including live plumbing, to verify reach, splash behavior, lighting interaction with sensors, and cleaning protocols.
• Confirmation that installed fixtures match scheduled models and that any substitutions still meet ADA, WaterSense, CALGreen, and ASME requirements.

7.2 Commissioning and digital integration

For sensor-based systems, commissioning extends beyond leak checks:

• Sensor range tuning to accommodate reflectivity, lighting conditions, and basin geometry.
• Verification of time-outs (for example, 30-second shutoff limits), aligning with both manufacturer recommendations and water-efficiency goals.
• Integration testing with BMS where run-time data, fault codes, and leak alerts are exposed to facility management dashboards.

7.3 Post-occupancy evaluation

Global studios are increasingly building feedback loops from completed projects into their standards:

• Tracking maintenance tickets related to fixtures and finishes to refine future specifications.
• Using water-use and failure data to justify more robust or standardized spec lines in design guides.
• Updating corporate BIM and specification templates to reflect lessons learned.

Publicly available manufacturer platforms targeted at architects—such as FontanaShowers’ architect-focused thought leadership and commercial restroom design pages, or BathSelect’s architect and designer resources—provide additional reference points for these iterative refinements:
