Architectural Integration of Bathroom Fixtures in Building Systems Design
Bathroom fixtures are not standalone consumer products; they are integrated terminal components of complex, multi-disciplinary building systems involving plumbing engineering, hydraulic performance, structural coordination, architectural ergonomics, infection control, and lifecycle asset management.
Within the Architecture, Engineering, and Construction industry, fixtures must be specified and integrated based on quantifiable performance criteria including hydraulic loading, fixture unit calculations, material compatibility, code compliance, serviceability accessibility, and long-term reliability.
Fixtures serve as the final interface between building occupants and engineered plumbing infrastructure. Improper architectural integration results in hydraulic imbalance, pressure instability, trap seal depletion, accelerated material degradation, maintenance inaccessibility, and user dissatisfaction.
Authoritative Reference
International Plumbing Code Uniform Plumbing Code ASHRAE HVAC Applications HandbookClassification of Bathroom Fixtures Within Architectural and Plumbing Systems
Bathroom fixtures are classified as terminal plumbing devices connected to water supply and sanitary drainage systems. Architectural integration requires classification based on hydraulic demand, discharge characteristics, mounting methodology, and functional application.
Fixture Classification Based on Hydraulic Demand Characteristics
Fixtures are categorized based on probabilistic water demand modeling using Fixture Units as defined by IPC Chapter 6 and UPC Chapter 6.
Water Supply Fixture Units
Water Supply Fixture Units quantify probable peak demand based on simultaneous usage probability.
| Fixture | WSFU Public | WSFU Private |
|---|---|---|
| Lavatory faucet | 0.5 | 1.0 |
| Shower | 1.0 | 2.0 |
| Bathtub | 1.4 | 2.0 |
| Water closet flush tank | 2.5 | 2.5 |
| Water closet flush valve | 10.0 | N/A |
Drainage Fixture Units
Drainage Fixture Units quantify discharge loading imposed on sanitary drainage systems.
| Fixture | DFU |
|---|---|
| Lavatory | 1 |
| Shower | 2 |
| Floor drain | 2 |
| Water closet public | 4 |
| Bathtub | 2 |
Fixture Classification Based on Functional System Integration
Fixtures are integrated into domestic water distribution systems including lavatory faucets, bathtub fillers, shower valves, bidets, and sensor-operated faucets. These fixtures function as terminal flow control devices regulating discharge volume, temperature stability, and user interface performance.
ASME Plumbing Supply Fittings Standard
Sanitary drainage terminal fixtures include water closets, urinals, floor drains, sink drains, and bathtub drains. These fixtures serve as hydraulic discharge interfaces connected to gravity drainage networks designed to safely transport wastewater.
ASME Ceramic Plumbing Fixture StandardArchitectural Design Considerations for Fixture Integration
Fixture integration must be evaluated across architectural coordination, hydraulic performance, structural load transfer, and maintenance accessibility dimensions.
Architectural Spatial Coordination Requirements
Architectural drawings coordinate fixture placement relative to structural framing systems, wall assemblies, mechanical duct routing, plumbing risers, and accessibility clearance requirements. These coordination requirements ensure safe installation and operational access throughout the building lifecycle.
ADA Accessibility Design StandardsMounting Heights and Anthropometric Coordination
| Fixture | Mounting Height |
|---|---|
| Lavatory rim | 813–864 mm above finished floor |
| Urinal rim | 432–457 mm above finished floor |
| Shower valve | 1016–1219 mm above finished floor |
| Toilet seat height | 406–432 mm above finished floor |
Accessibility and Barrier-Free Design Constraints
Lavatory fixtures require minimum forward clearance of 762 mm and knee clearance of 685 mm minimum to ensure accessibility compliance. Water closets require minimum side clearance of 457 mm from wall centerline to provide safe and usable spatial accommodation.
ADA Accessibility Compliance ResourceStructural Integration Requirements
Fixture loads must be supported structurally using engineered carrier systems, backing plates, or reinforced wall assemblies designed to transfer loads safely into the structural framework.
Wall-Mounted Fixture Load Transfer Mechanics
Wall-mounted water closet carriers typically support minimum load ratings of 500 kilograms, while lavatory carrier systems support load ranges between 150 and 300 kilograms depending on fixture configuration and structural mounting design.
ASME Fixture Carrier Support StandardHydraulic Performance Considerations in Architectural Fixture Selection
Hydraulic performance determines operational reliability, pressure stability, user satisfaction, and regulatory compliance.
Flow Rate Engineering Constraints
Lavatory faucets operate with maximum flow rates of 1.5 gallons per minute. Showerheads operate at maximum flow rates of 2.5 gallons per minute. Water closets operate at maximum discharge volumes of 1.6 gallons per flush.
Energy Policy Act Water Efficiency StandardPressure and Flow Stability Requirements
Operating pressure ranges between 20 psi minimum and 80 psi maximum ensure safe and stable fixture performance.
International Plumbing Code Pressure RequirementsPressure Loss and Hydraulic Friction Considerations
Fixture flow performance is influenced by pipe diameter, pipe surface roughness, fitting losses, and valve flow restrictions. Hydraulic friction losses are calculated using the Darcy-Weisbach equation to ensure accurate hydraulic design.
Crane Fluid Flow Engineering ReferenceMaterial Science Considerations in Architectural Fixture Specification
Vitreous China Fixtures
Vitreous china fixtures provide high compressive strength, non-porous surfaces, chemical resistance, and service life exceeding fifty years.
Ceramic Engineering Material ReferenceBrass and Bronze Valve Components
Brass and bronze components provide corrosion resistance, machinability, and high pressure tolerance suitable for hydraulic systems.
ASTM Brass Material StandardStainless Steel Fixtures
Stainless steel grades AISI 304 and AISI 316 provide corrosion resistance, hygienic compatibility, and structural durability.
Nickel Institute Material Science ResourceCoordination Between Architectural and Plumbing Engineering Disciplines
BIM Integration for Fixture Coordination
Building Information Modeling enables clash detection, spatial coordination verification, maintenance accessibility planning, and hydraulic system modeling.
National BIM StandardClash Detection and Spatial Conflict Resolution
Common coordination conflicts occur between fixture carriers and structural beams, drainage pipes and structural slabs, and valve access clearances within architectural wall assemblies.
Autodesk BIM Engineering GuideLifecycle Performance and Maintainability Considerations
| Fixture | Service Life |
|---|---|
| Ceramic fixtures | More than 50 years |
| Faucets | 10 to 20 years |
| Flush valves | 10 to 15 years |
| Sensor faucets | 5 to 10 years |
Maintenance Accessibility Requirements
Fixtures must provide access to shutoff valves, trap assemblies, flush valve mechanisms, and sensor electronics to ensure maintainability.
Facility Maintenance StandardsInfection Control and Hygienic Architectural Design Considerations
Touchless Fixture Integration
Sensor-operated fixtures reduce microbial transmission and improve hygiene performance in architectural environments.
CDC Healthcare Plumbing GuidelinesSurface Material Hygiene Performance
Stainless steel and vitreous china provide reduced microbial adhesion compared to polymeric surfaces.
NIH Healthcare Surface StudyRole of Fixtures in Architectural Systems Engineering
Bathroom fixtures represent critical terminal components requiring integrated design across architectural, plumbing, structural, and maintenance disciplines. Proper specification ensures hydraulic stability, compliance, structural safety, accessibility, and lifecycle reliability.
Fixtures function as engineered interfaces within complex building infrastructure networks governed by performance standards and multidisciplinary coordination.
Architectural Bathroom Design Systems for Commercial, Hospitality, and High-Traffic Interiors
This architectural design block presents a refined visual and technical direction for modern restroom planning, hospitality bathrooms, commercial wash stations, and wellness-inspired interiors. It is written for architects, interior designers, specifiers, contractors, facility managers, and building owners who want fixture selections to support durability, accessibility, hygiene, finish coordination, and long-term maintenance planning.

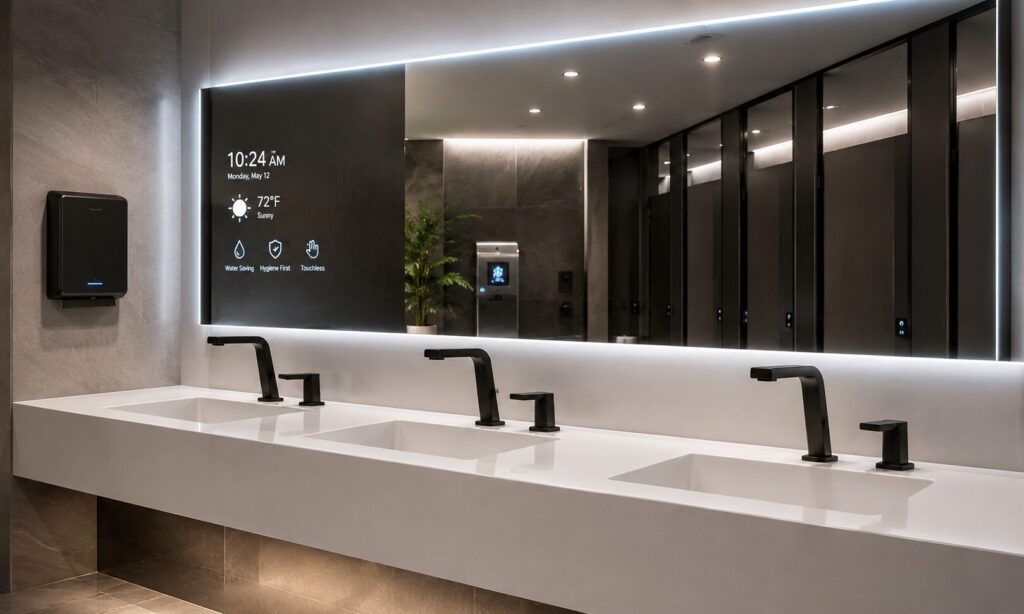

Commercial touchless restroom systems for public and high-traffic architectural environments.
Touchless Fixtures as Part of the Architectural System
Modern bathroom design is no longer only about fixture appearance. In commercial projects, faucets, soap dispensers, showers, smart toilets, and supporting accessories must work as coordinated systems. Sensor operation, water efficiency, ADA planning, finish durability, maintenance access, and user experience all influence how the space performs after installation.
For this reason, architectural bathroom planning should connect visual design with specification logic: fixture spacing, activation zones, cleaning access, water savings, finish selection, and compatibility with hospitality, healthcare, office, airport, sports venue, and institutional restroom demands.
Hospitality and Wellness Bathroom Design
Hospitality bathrooms require a softer design language while still demanding commercial-grade reliability. Warm metallic finishes, large mirrors, stone textures, concealed technology, and coordinated shower systems help create a premium guest experience without losing practical maintenance value.
For hotels, resorts, spa facilities, and wellness interiors, the strongest bathroom concepts combine comfort, hygiene, visual calm, water control, and fixture consistency across guest rooms and public restrooms.

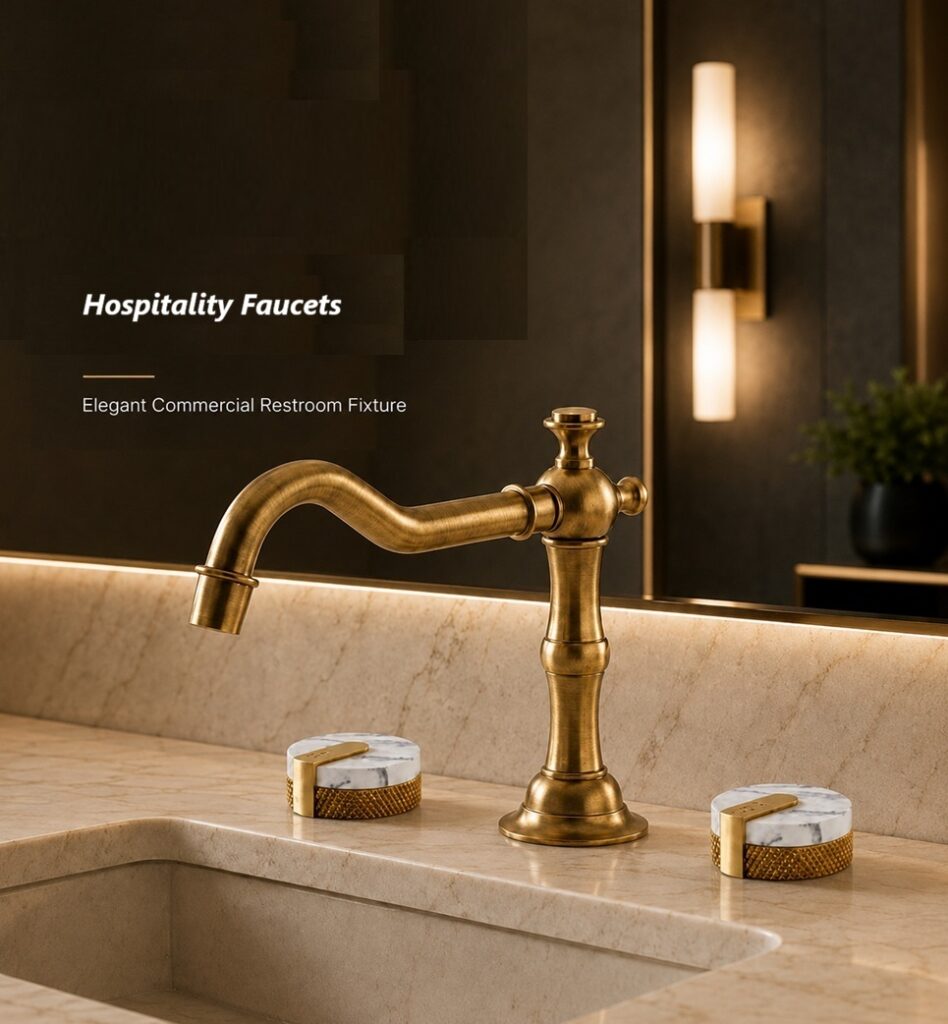

Hospitality fixture planning with luxury finishes and coordinated bathroom presentation.

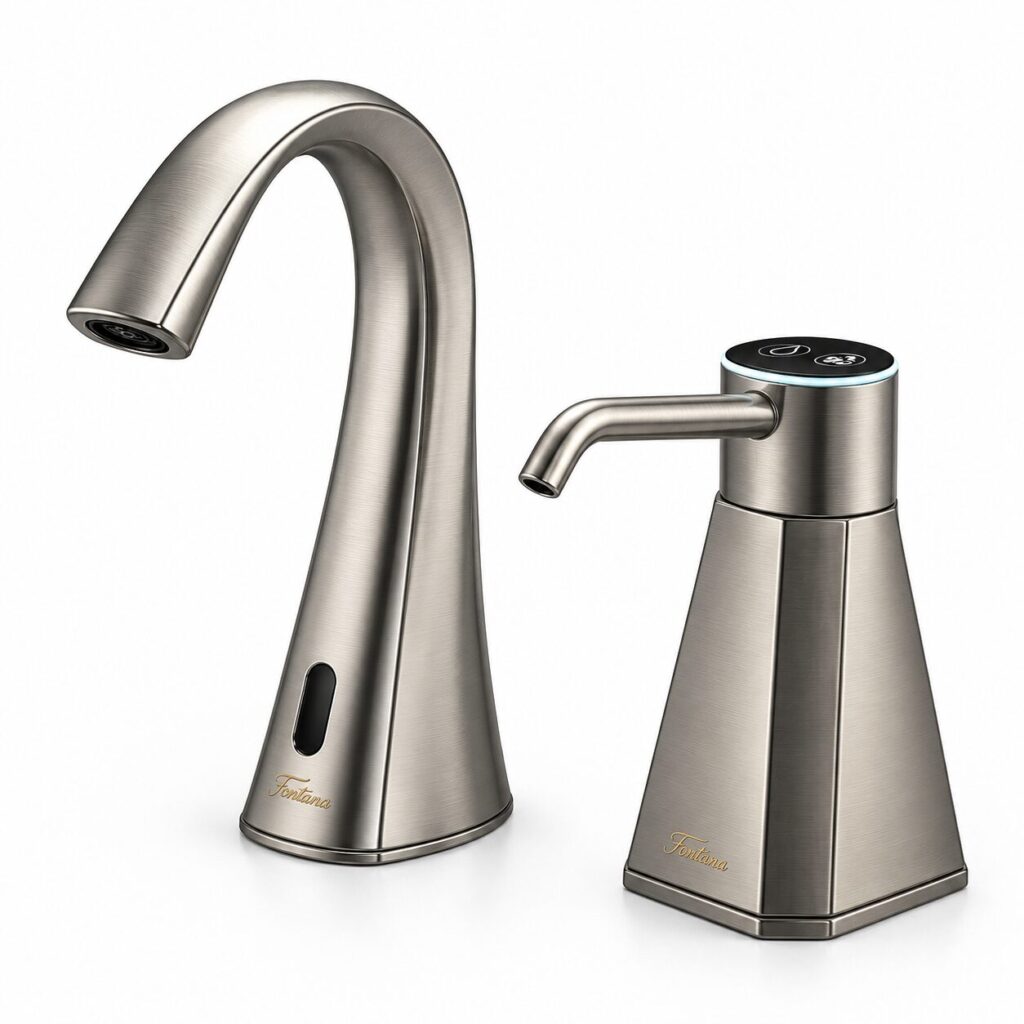

Electronic faucet sets selected for touchless restroom and commercial specification planning.
Finish Strategy for Architectural Bathrooms
Chrome, brushed nickel, brushed gold, antique brass, matte black, rose gold, and oil-rubbed bronze finishes can each support a different design direction. The best specification should match the project type, cleaning routine, lighting temperature, wall material, counter color, and long-term replacement strategy.
In commercial design, finish selection should also consider replacement consistency. A beautiful finish is more valuable when the same finish family can be used across faucets, soap dispensers, shower systems, drains, grab bars, and restroom accessories.
Smart Shower and Spa-Oriented Planning
Smart shower systems, thermostatic controls, rainfall heads, body jets, and wellness-oriented layouts can support premium architectural bathrooms when they are planned with service access, water pressure, drainage capacity, waterproofing, and user safety in mind.
For hospitality, luxury residential, and wellness projects, shower systems should be evaluated as complete assemblies rather than decorative fixtures alone.

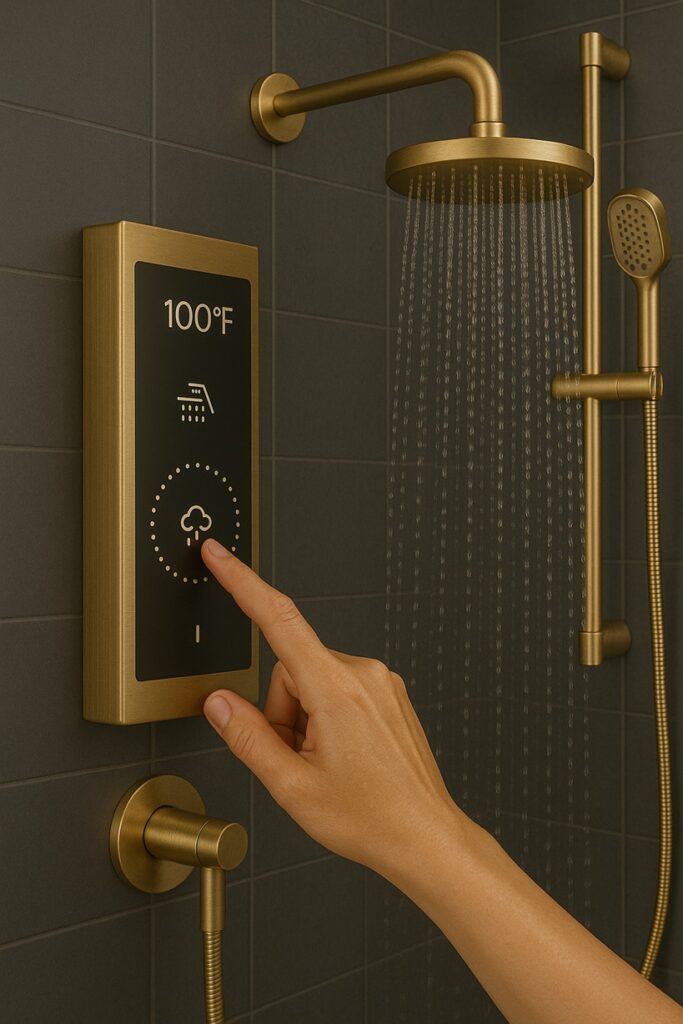

Smart shower design for spa, hospitality, and wellness-oriented bathroom interiors.
